Polycrystalline Diamond · PCD
A diamond-tool family for selected non-ferrous and abrasive applications, distinct from CBN and tungsten carbide.
Explore detailsMAAHTAB AGRO METAL ENGINEERING GROUP
Cubic Boron Nitride · CBN
For reviewing hard-part machining, hardened steel and selected roll applications, with the grade matched to the process.
Discuss your requirements ↗Distinguishing properties
High hot hardness and wear resistance; CBN content, binder and edge preparation affect tool behaviour.
Typical applications & review scope
Finishing hardened steel components, transmission parts and application review for roll turning based on the actual roll material.
Product forms, grades & order specifications
CBN inserts appear in the VOLLCUT catalogue. Order code, cutting tips, dimensions and grade are checked with the supplier; blanks or special forms require separate assessment.
Relevant industries
Steel and rolls, automotive components and hard-part manufacturing.
Selection considerations
Provide workpiece material and hardness, continuous or interrupted cutting, machine stability, finish and coolant conditions. CBN is not a universal choice for all steels.
Related materials & solutions
Technical Ceramics
A diverse family of material systems, from cutting ceramics to specification-led review of wear, thermal and electrical requirements.
Explore detailsTungsten Carbide · WC-Co
Cemented carbide combines a hard WC phase with a cobalt-rich binder for diverse tooling choices and wear-component assessment.
Explore detailsVOLLCUT · 2021
Catalogue sample · specifications for review

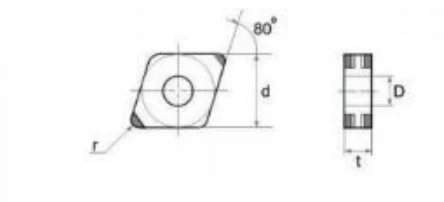

CNGA 120404 M1
d 12.70 · t 4.76 · r 0.40 · D 5.16 mm
This is a catalogue example; orderable grade and current supply terms are confirmed through inquiry.
View the original table · 70 ↗
ARIYA TAJHIZ MAAHTAB · ATM
Discuss this material
Describe the application; you do not need an exact grade to start.
General material reference; independent of group commercial status: Sumitomo Electric Hardmetal
